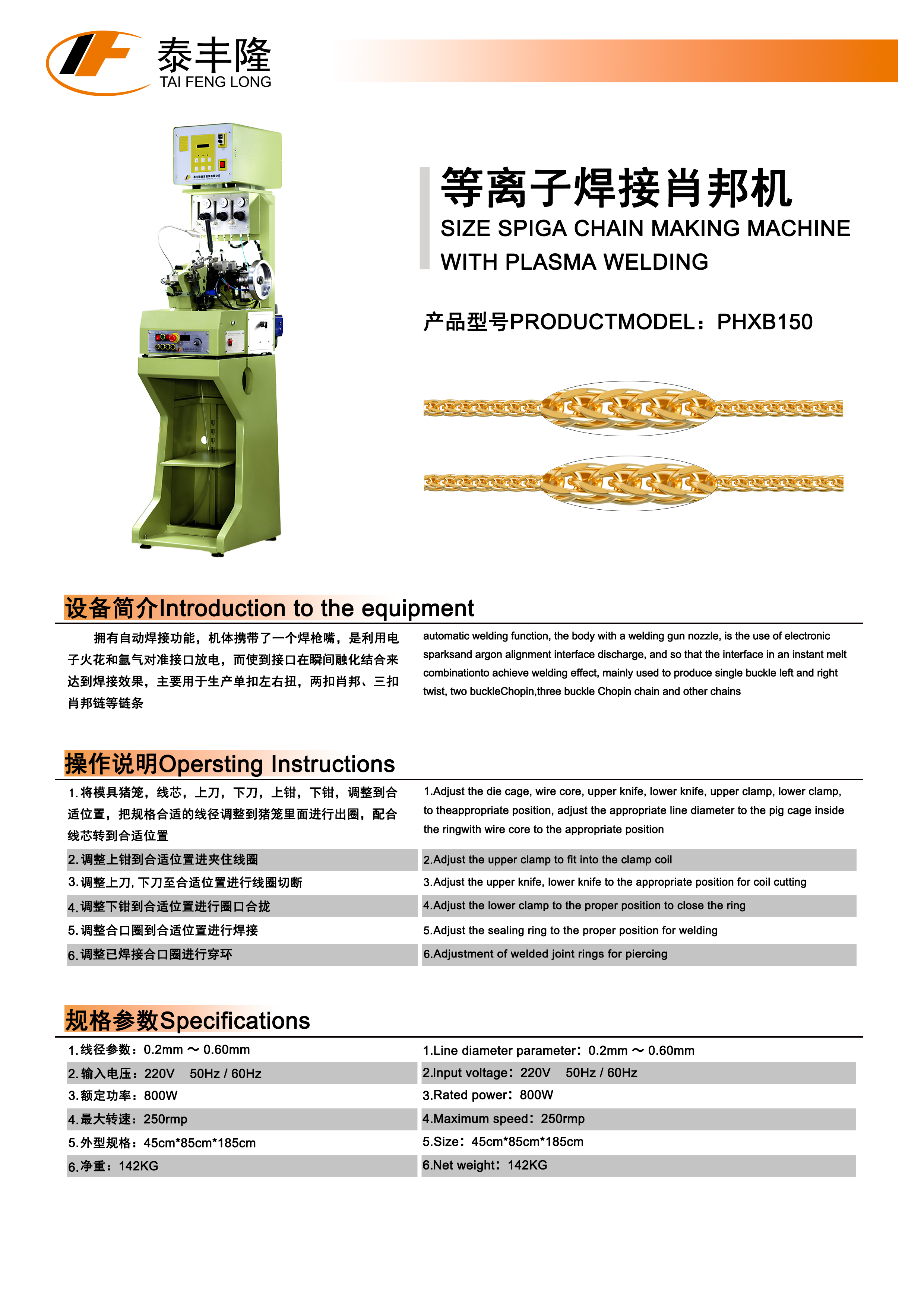

特点 FEATURES

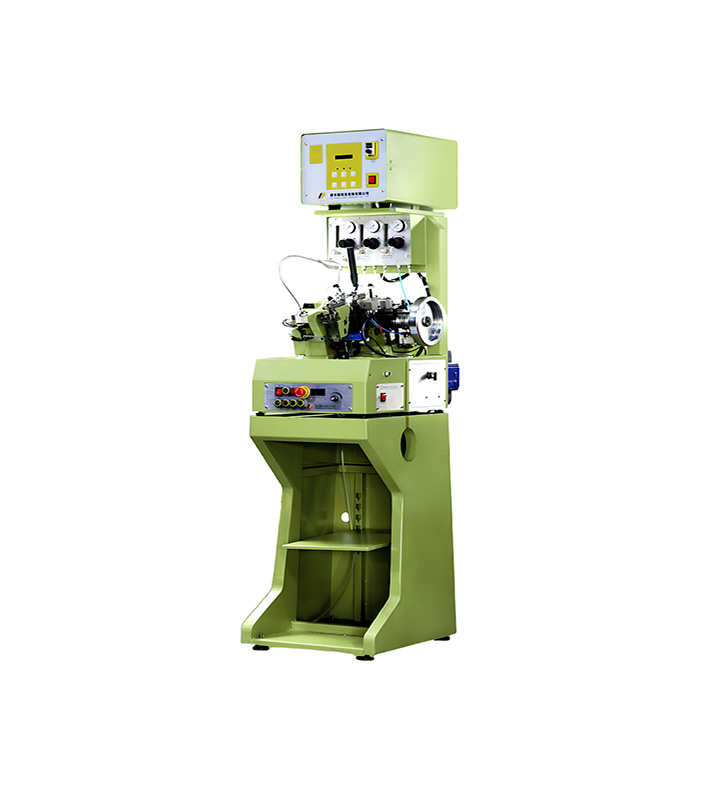

拥有自动焊接功能,机体携带了一个焊枪嘴,是利用电子火花和气对准接口放电,而使到接口在瞬间融化结合来达到焊接效果,主要用于生产单扣左右扭,两扣肖邦、三扣肖邦链等链条
With automatic welding function, machine equipped with a plasma nozzle, it use electronicsparks and argon alignment interface discharge, and so that the interface in an instantmelt to achieve welding effect. Left and Right curb chain, double spiga chain, triple spigachain can b
操作说明 OPERATING INSTRUCTIONS
1.将模具螺旋槽,线芯,上刀,下刀,上,下钳,调整到合适位置,把规格合适的线径调整到螺旋槽里面进行出圈配合线芯转到合适位置
2.调整上钳到合适位置进夹住线圈
3.调整上刀,下刀至合适位置进行线圈切断
4.调整下钳到合适位置进行圈口合拢
5.调整合口圈到合适位置进行焊接
6.调整已焊接合口圈进行穿环
1.Adjust the spiral. pin. horizontal knife, vertical knife. pincers,facons to the properposition insert the wire into the sprial and position it by the pin.
2.Adjust the pincers to clamp the spiral
3.Adjust the horizontal and vertical knife to cut the ring
4.Adjust the facons to make the link
5.Adjust the link to the proper position for welding
6.Pass through the welding link
技术参数 TECHNICAL PARAMETER
Production line diameter parameter D 0.2mm-0.60mm
Input power220V/50HZ
Rated power 800w
Maximum speed 250rmp
SizeD 45cm*85cm*185cm
Net weight142KG
